Model weight up to 7kg › EL-5plus landing gear

For motor models up to approx. 6kg with a wheel weight up to approx. 100g. Suitable for landing gear legs, made with Ø4.5mm spring steel wire.


Art.Nr.0151 EL-5+ / Set A

Artikel-Nr.: 0151_en
     Electronic landing gear EL-5 plus/ Set A


       Technical data:


Contains: 2 main landing gears + 1 nose landing gear

..
SFr. 350.00

Beschreibung

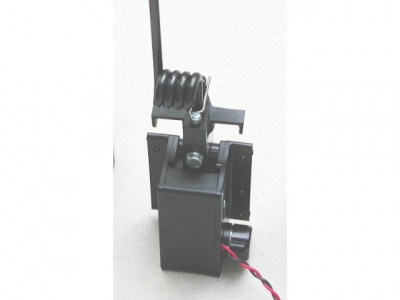

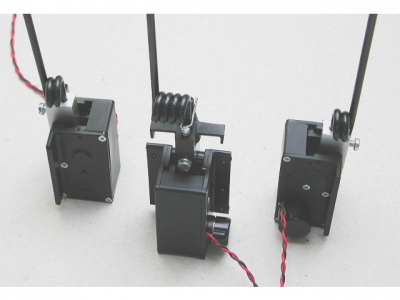

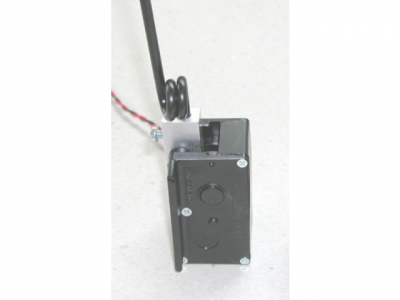

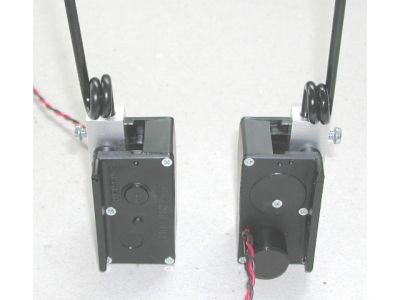

     Electronic landing gear EL-5 plus/ Set A

       Technical data:

  • Contains: 2 main landing gears + 1 nose landing gear
  • End shutdowns, locking, slip clutch
  • For wheel weight up to approx. 100g
  • The set includes Ø4.5mm spring steel landing gear legs
  • Weight 62g each landing gear (without the legs)
  • current consumption approx. 100mA per landing gear
  • operating voltage between 5,0V - 5,5V

 Technical Documentation

 Installation


Art.Nr.0152 EL-5+ / Set B

Artikel-Nr.: 0152_en
       Electronic landing gear EL-5 plus / Set B

       Technical data:


Contains: 2 main landing gears


End shutdow..
SFr. 230.00

Beschreibung

       Electronic landing gear EL-5 plus / Set B



       Technical data:

  • Contains: 2 main landing gears
  • End shutdowns, locking, slip clutch
  • For wheel weight up to approx. 100g
  • The set includes Ø4.5mm spring steel landing gear legs
  • Weight 62g each landing gear (without the legs)
  • current consumption approx. 100mA per landing gear
  • operating voltage between 5V - 5.5V

 Technical Documentation

 Installation







Art.Nr.0153 EL-5+ / nose landing gear

Artikel-Nr.: 0153_en
     Electronic landing gear EL-5 plus / nose gear

       Technical data:


Contains: 1 nose landing gear


End shutdo..
SFr. 125.00

Beschreibung

     Electronic landing gear EL-5 plus / nose gear



       Technical data:

  • Contains: 1 nose landing gear
  • End shutdowns, locking, slip clutch
  • For wheel weight up to approx. 100g
  • includes Ø4.5mm spring steel landing gear leg
  • Weight 62g (without the leg)
  • current consumption approx. 100mA
  • operating voltage between 5,0V - 5.5V

 Technical Documentation

 Installation







Art.Nr.0154 EL-5+ / main landing gear

Artikel-Nr.: 0154_en
       Electronic landing gear EL-5 plus / main gear


       Technical data:


Contains: 1 main landing gear



E..
SFr. 120.00

Beschreibung

       Electronic landing gear EL-5 plus / main gear

       Technical data:

  • Contains: 1 main landing gear
  • End shutdowns, locking, slip clutch
  • For wheel weight up to approx. 100g
  • includes Ø4.5mm spring steel landing gear leg
  • Weight 62g (without the leg)
  • current consumption approx. 100mA
  • operating voltage between 5V - 5.5V

 Technical Documentation

 Istallation
